Prefab house eps sandwich cement panel

FOB Reference Price:Get Latest Price
US $11-22 / Square Meter | 500 Square Meter/Square Meters (Min. Order)
Supply Ability:
50000 Square Meter/Square Meters per Month
Port:
wuhan
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
VJ
Model Number:
VJ-107
Panel Material:
Nonmetal
Type:
EPS Sandwich Panels
specification:
2270mm*610mm*60mm(75,90,100,120,150)
color:
grey
core:
cement,EPS,fly ash
face material:
calcium silicon bpard
Packaging & Delivery
Packaging Details
package
1.Free packing (with normal pallet and packing belt)
2.Standard exporting packing(With plastic thin film,wdge protected and good

Prefab house eps sandwich cement panel



Product Description

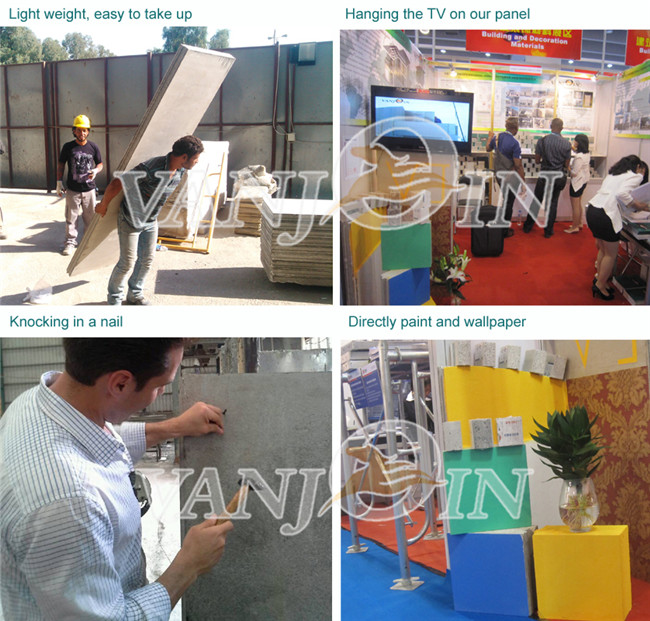

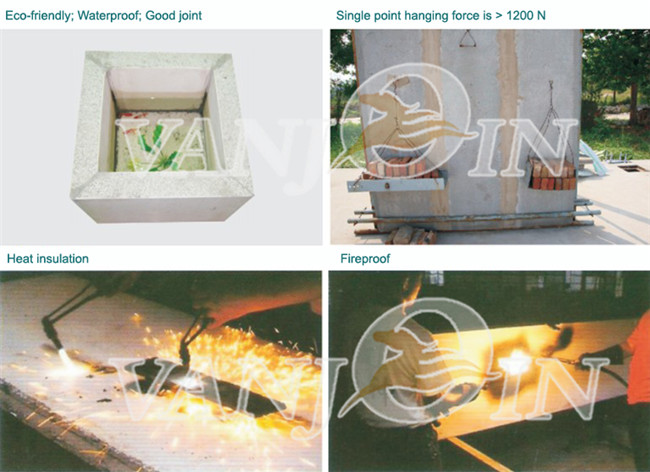

 Product Detailed images

  • overall structure and specification



  • Raw materials we used

 sandiwch cement panel is a kind of light weight energy saving compound board material taking fibre reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, fly ash as fillers and forming by one time compound.



  • Product under construction







Product Parameters

Thermal Conductivity(BS 874: Part 2:1986)0.221W/mK
Flexural Strength(Longitudinal)4.27MPa
Flexural Strength(Transverse)4118N
Moisture Content9%
Moisture Movement0.06%
Resistance to Continuous Heating80°C
Surface AlkalinitypH 7-10
Non-combustibility(face board)BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1997, Grade A
Heat of Combustion(Face Board)BS EN ISO 1716:2002
Building Regulations Classification(face board)Euro Class A1
Fire Rated Partition2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/T9978
Water Tightness to ASTM c1185No droplets observed behind the panel, Test of 24 hours at 250mm water head
Partition Stiffness-heavy duty grade              (BS 5234:Part: 2:1992, Annex A)Pass
Resistance to structural damage by multiple impacts from a large soft body - heavy duty grade(BS 5234:Part 2: 1992,Annex E)                            No collapse of dislocation
Surface damage by hard body impact -heavy duty grade(BS 5234:Part: 2:1992, Annex B)Pass
Effects of door slamming-heavy duty grade   BS 5234:Part: 2:1992, Annex BPass
Resistance to crowd pressure-heavy duty gradeBS 5234:Part: 2:1992, Annex GNo collapse or damage
Heavy weight anchorage(high level wall cupboard) Eccentric downward                    BS 5234:Part: 2:1992, Annex KNo damage or detachment of anchor
Anchorage45kg
Acoustic Performance
-60mm thick38dB
-75mm thick40dB
-100mm thick42dB
-120mm thick44dB
-150mm thick46dB

Application Area

The product can replace construction materials as red brick, clay solid brick, air brick, color-coated steel sandwich board, gypsum block, wire spatial grid structure perlite board, perlite porous board etc. It can be used as Exterior wall, Interior Partition Wall, Roof System and Floor system.



Advantages

  • Energy-saving, lightweight, and environmental protection
  • Polyphenyl granule in Vanjoin board has good heat-insulation effect and heat lost ratio is far below the other brick wall building
  • Energy-saving effects of the building is greatly improved
  • Raw materials do not include harmful substances
  • Environmental products, it is highly recommended by the government
  • Capacity: 650kg/m3, just one sixth of the brick building
  • Comparison of inner wall panel 75 and 120mm it will increase 12m practical area, for 100m2 house, it will increase 4.16m2
  • Waterproof and damp resistant
  • With fireproof feature.





Packaging & Shipping

 Packaging

Mode 1: Free packing (with normal pallet and packing belt).
Mode 2: Standard exporting packing(With plastic thin film,wdge protected and good pallet).



Shipping: Container transportation
