Quick Details

  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Vanjoin Sandwich Wall Panel
  • Model Number: VJB-WPE0790(Fireproof Sandwich Wall Panels)
  • Material: Sandwich Panel, EPS, cement, sand, additives, calcium silicon boar ect.
  • Use: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant, Cottage, Hospital, ect.
  • Name: Modern Kitchen Design Fireproof Sandwich Wall Panels
  • Type: Nonmetal Sandwich Panels
  • Size: 2270 * 610 * 60/75/90/100/120/150mm
  • Application: interior or exterior wall, floor, villa, prefabricated house
  • Structure: steel or concrete stricture
  • Fire rated partition: 4 hours 1000 centigrade
  • Sound insulation: Good, 35-46dB
  • Anti-earthquake: 7-8 class
  • Certification: ISO900, CE, BV, SGS

Packaging & Delivery

Packaging Details Modern Kitchen Design Fireproof Sandwich Wall Panels
Package
1. Free packing (with normal pallet and packing belt)
2. Standard exporting packing (wrapped with plastic thin film,wedge protect and good pallet)
3. Packing size: 1500-3000*610*1000mm
4.Loading: 18 pallets per 20' container
Delivery Time Shipped within 7-15 days after payment

Modern Kitchen Design Fireproof Sandwich Wall Panels


Vanjoin lightweight composite eps sandwich panels is a kind of energy saving light weight compound

board. It can replace construction materials like red brick, clay solid brick, air brick, color-coated steel

sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.



Product Description



1. Composition of Sandwich Panel  (Fireproof Sandwich Wall Panels)

(1) Surface Board: 5mm Calcium Silicon Board
(2) Core Material: EPS / ceramsite/perlite; Cement; Sand or fly ash; water; addictives; and ect.





2. Three Types Sandwich Panels  (Fireproof Sandwich Wall Panels)

 Types of Sandwich PanelFeatures Appication
 1. EPS Sandwich Panel

 Light weight, heat  insulation and heat  preservation, excellent  soundproof performance

 Suitable for extremely hot and cold  areas, as well as the environments  with high soundproof requirements
 2. Perlite Sandwich Panel Excellent waterproof  performance, and also with  outstanding heat-resisting  and fire-retarding function Suitable for areas with many rains
 3. Ceramicite Sandwich Panel High strength and high  solidity, bulletproof; high  fireproof grade Suitable for the social security not  good



Specifications



3. Specification of EPS Sandwich Panel  (Fireproof Sandwich Wall Panels)



Length  Width    Thickness   Weight Application
       2270mm       610mm       60mm        45-48kg/m2                   Roof
       75mm        50-53kg/m2              Interior wall
       90mm        55-58kg/m2         Interior / Exterior wall
      100mm        60-65kg/m2         Interior / Exterior wall
      120mm        65-75kg/m2              Exterior wall
      150mm        80-90kg/m2               Exterior wall
 Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm

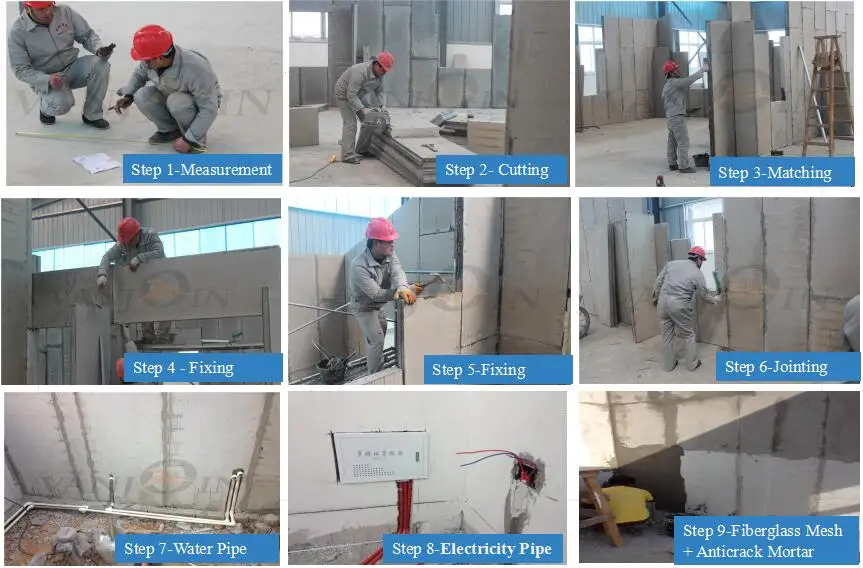

Installation

Installation of Fireproof Sandwich Wall Panels
Application



4. Application of EPS Sandwich Panel   (Fireproof Sandwich Wall Panels)

Our EPS Sandwich Wall Panels can be widely applied to interior wall, exterior wall, roof and floor
for varoius high and low buildings, such as bank, office building, hotels, school, shopping mall, ware
house, amusement hall, portable dwellings, family house, workshop and ect.

(1) EPS Sandwich Panel for Exterior Wall     (Fireproof Sandwich Wall Panels)


(2) EPS Sandwich Panel for Interior Wall    (Fireproof Sandwich Wall Panels)

(3) EPS Sandwich Panel for Roof   (Fireproof Sandwich Wall Panels)
Features



5. Main Features of EPS Sandwich Panels  (Fireproof Sandwich Wall Panels)

Item No.  Features  Details Description
1Light weight1/6 of traditional brick
2Fireproof 4 hours 1000 centidegree;Grade A(GB/T9987)
3Waterproof Good waterproof perfermance
4Sound-insulation Excellent acoustic perfermance 38dB-46dB
5Area-saving Save 4.26m2/100 m2
6Fast constructionTwo experienced workers can install 50-80m2/day
7 Long life span70 years
Packaging & Shipping



6. Packing Details of EPS Sandwich Panels (Fireproof Sandwich Wall Panels)

LengthWidthThicknessPacking Size of 20' GP Container
2270mm610mm60mm315pcs / 436m2
75mm252pcs / 349m2
90mm207pcs / 287m2
100mm189pcs / 262m2
120mm153pcs / 212m2
150mm126pcs / 175m2

Packing Details1. Free packingwith normal pallet and packing belt
2. Standard exporting packingwrapped with plastic thin film,wedge protect & good pallet
3. Packing size:1500-3000*610*1000mm
4. Loading18 pallets per 20' container


























7. Sucessful Overseas Projects  (Fireproof Sandwich Wall Panels)

 Iran Kish Island Project



The Philippines Tall Buildings Project       (Fireproof Sandwich Wall Panels)



7. Vanjoin Factory and Office    (Fireproof Sandwich Wall Panels)





8. Vanjoin Fair Show    (Fireproof Sandwich Wall Panels)

Vanjoin Group in Thailand Fair 2017

Vanjoin Group in IBS Fair(Orlando, USA) 2017



---Vanjoin Sandwich Panel  Machine---------------- Vanjoin Soft Ceramic Tiles-------------





Lucy Xu / Sales Manger

Vanjoin Group

Tel:+86-27-82801008  82801001
Fax:+86-27-82801003


Trade manager: cn1001212872

Skype: xu.min16  wechat: min11302

what'sapp: +86-13628692772

 Add: Floor 14, Golden Block, Poly Champagne International Building, Hanxi No.1 Road,

           Qiaokou District, Wuhan, Hubei, China



For more information, Please search our Home page:

 http://vanjoin.en.alibaba.com/      http://www.vanjoinbuild.com/
