Eps Concrete Wall Making Product Line Sandwich Panel Machine

  • >=1 Sets
    $100,099.00
Model Number:
VJB09
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Vanjoin
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
Wastage:
Low and recyclable sandwich panel production line
Capacity of one mould car:
30-40 pieces of panels according to thickness
Environmental:
Closed mixing system
Service Time:
20+ years
Advantage2:
One key control wall panel making machine
Color:
Bule, red, yellow or customized
Usage of panel:
Partition interior/ exterior wall, prefab house, high building
Panels can be made:
EPS/ ceramisite/ perlite sandwich panel, hollow/ solid panel
Advantages1:
High output, less worker needed, less waste
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Load in 40HC;
2. Machinery packed into pallets and protect by epe films;
3. Spare parts packed into cartons
Port
Wuhan
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Eps Concrete Wall Making Product Line Sandwich Panel Machine

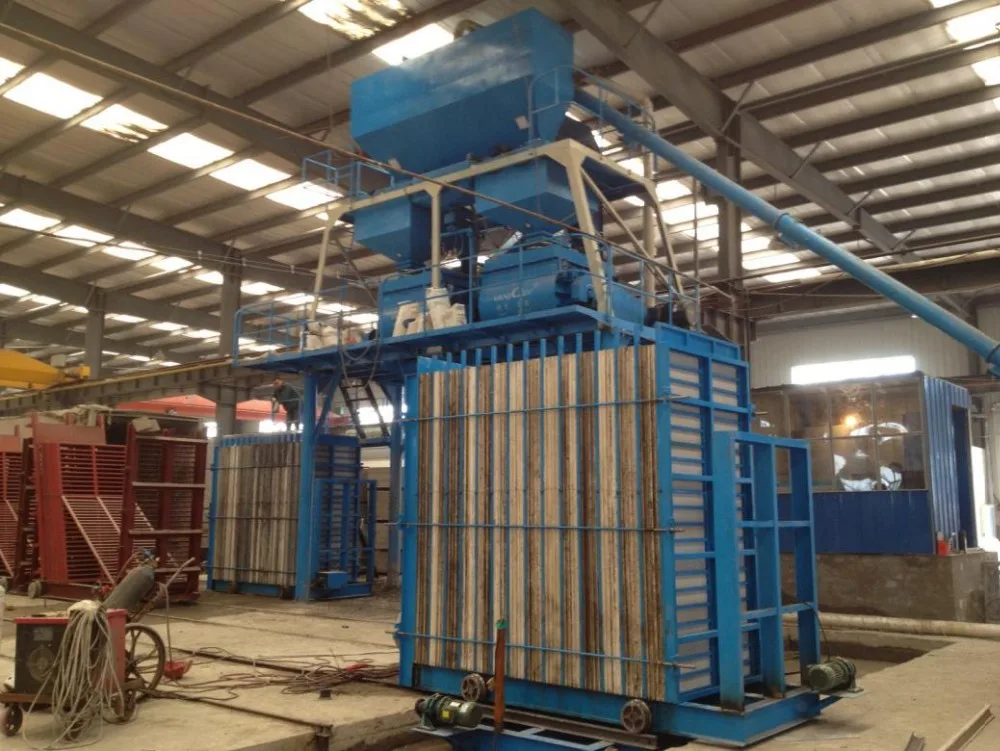

Outline of Sandwich Panel Production Line

Vanjoin Wall Panel Production Line included 4 systems.

1) Foaming system (include boiler, eps foaming machine);
2) Raw materials storage / measuring / conveying system (include raw materials silo, storage& weighing             &measuring hopper, pump, etc);
3) Mixing system (include mixing machine, electric control system);

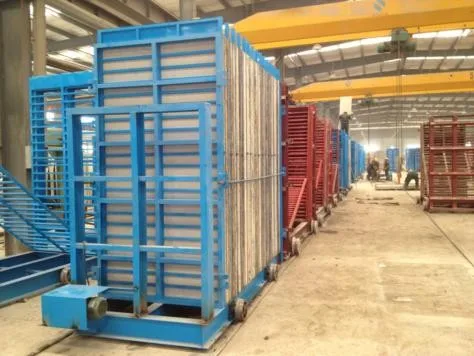

4) Forming system (include vertical mould car), can produce wall panel

    22 - 60PCS / time.

Annual output
(m2)
Quantity of moulding cars(set)
Workers required
Prodction area
(m2)
Stacking area
(m2)
100,000
5
8 - 13
500
1,000
200,000
8
10 - 18
600
2,000
300,000
10
12 - 20
700
3,000
400,000
11
15 - 23
800
4,000
500,000
12
18 - 28
900
5,000
600,000
13
22 - 32
1,000
6,000
700,000
14
25 - 35
1,100
7,000
800,000
15
28 - 38
1,200
8,000
900,000
16
32 - 42
1,300
9,000
1,000,000
17
35 - 46
1,400
10,000
Remarks
the parameters above in only for your reference.

Features.

1) Automatic controlled by Siemens PLC Controller;
2) Vertical molde car can move automatically;
3) Rail transfer system is remote controlled;
4) Vanjoin use 3m3 large-capacity mixer instead of mixer whose capacity is only 0.75m3. It can save time for      both mixing and pouring;
5) Wall panel machine can make wall panels with board (calcium silicate board or fiber cement board), or           panels without board as below :



Wall Panel specification
Size (mm)
L * W * H
Weight (kg/ m2)
Packing
(pcs/ m2 per20'GP)
Application
2270 x 610 x 60
45 - 48
315pcs/ 436m2
Roof
2270 x 610 x 75
50 - 53
252pcs/ 349m2
Interior wall
2270 x 610 x 90
55 - 58
207pcs/ 287m2
Interior/ Exterior wall
2270 x 610 x 100
60 - 65
189pcs/ 262m2
Interior/ Exterior wall
2270 x 610 x 120
65 - 75
153pcs/ 212m2
Exterior wall
2270 x 610 x 150
80 - 90
126pcs/ 175m2
Exterior wall/ Floor
Certificated
CE, ISO, SGS, BV, HSL and Invention patent

Advantages.


1) Vanjoin as Green Wall System manufacturer do ( Thin flexible wall tile, Wall Panel Machine, Lightweight           EPS panel and prefab house), Good experience of new building materials R&D, Operating, Installation will     serving you;
2) Recycling use the eps foam & eco-friendly;
3) Service Time/ 20+ years;
4) Fully closed working ensuring clear factory with less pollution;
5) Production line is easy operation and maintenance;
6) 200,000m2/month, 100,000m2 to 1,000,000m2 per year. High output, less worker needed, less waste.

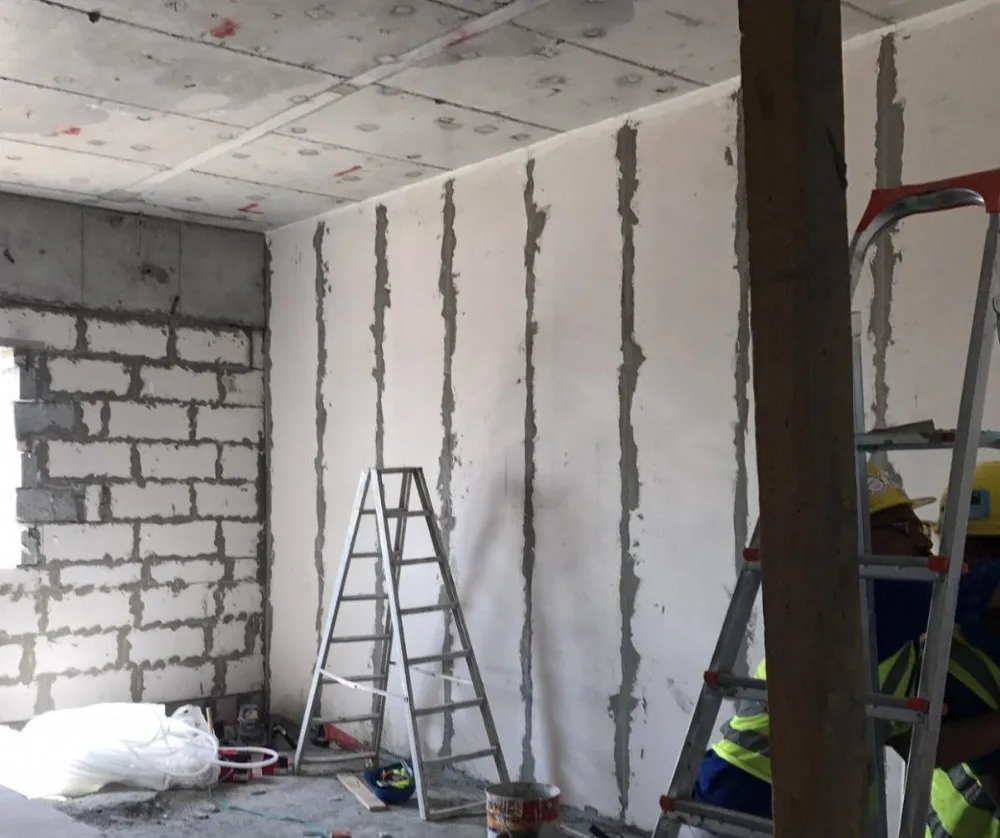

Project Cases
Our Company

Vanjoin Group

We have been Green wall system supplier and manufacturer of topnotch custom various custom Flexible Wall Tile ( stone, wood, brick, leather etc), Wall Panel Production Line, and Wall Panel in the Precast industry since 2006.
All of our New building materials are engineered and manufactured in our 40,000 square foot state-of-the-art manufacturing plant located in Wuhan, Hubei.

Our Service

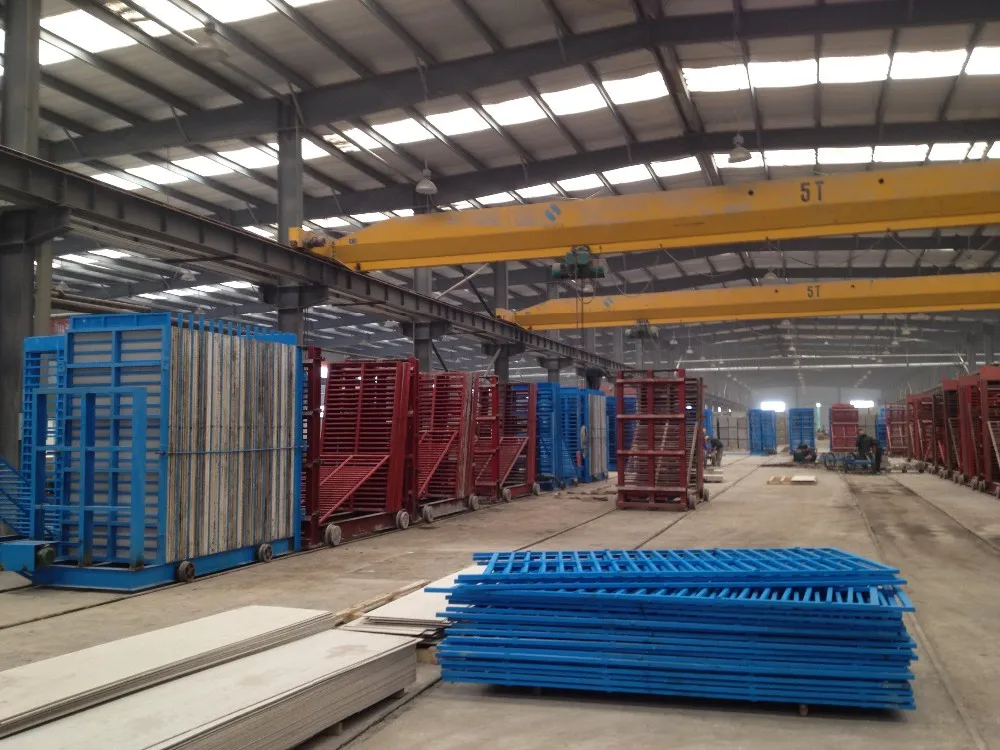

Vanjoin Factory.

- Industrial OEM design

- Machining & processing

- Perproduction samples

- Quality inspections

Delivering.

- Freight forwarding

- FOB from a port in China

- CIF to a port near you

- Door to Door

After-sales.

- Free Training

- Plant design

- Drawings provided

- Packing design and others
